PANELES BREAKERS Y ACC

104 found, showing page 6 of 7

HUB 2

Call for Price

For use on all Siemans and Murry single position meter sockets.

ALUMINUM

Size In=2

ALLTOOLS

Part Number
H2: Quantity Available
7

LAMINA FUSIBLE 30

Call for Price

Part Number
LF30: Quantity Available
55

LAMINA FUSIBLE 60

Call for Price

Part Number
LF60: Quantity Available
54

PANEL 102 RAINPROOF PLASTICO

Call for Price

Part Number
PCH102RP: Quantity Available
4

PANEL CHALLENGER 108 METAL

Call for Price

Part Number
PC108M: Quantity Available
Out of stock

PANEL CHALLENGER 112 METAL

Call for Price

Part Number
PC112M: Quantity Available
Out of stock

PANEL GE 102 METAL

Call for Price

Single phase, 3 wire, insulated/bondable neutral, 2 (1") spaces, 4 poles, 120/240 volt AC. No. GBK5 or No. GBK520 ground bars and doors sold separately. Tin-plated aluminum bus bar. In accordance with NEC, suitable for use as service equipment when not more than 2 service disconnecting mains are provided or when not used as a lighting and appliance panelboard. Neutral is movable to other side. When bonded, unused neutral connections may be used for equipment ground protectors in service entrance application. #8 - #2 wire range. Electrostatic powder coat, baked urethane painted. Rotate 180 degrees for bottom feed. Style 5 box 4-1/2" x 9-7/16" x 3". UL Listed file E8741.
INDOOR - NEMA 1 - TOP FEED

TYPE BR - FLUSH MOUNT

STEEL ENCLOSURE

Amp Rating=70

Part Number
PGE102M: Quantity Available
2

PANEL GE 102 METAL RAINPROOF

Call for Price

PRODUCT OVERVIEW

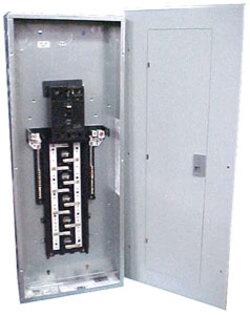

Load Centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

Descripcion espanol:
CENTRO DE CARGA P/TERMINAL PRINCIPAL P/EXT 70 A

Product Details
Breaker/ Load Center Type:Main Lug
Bus Bar Material:Aluminum
Cable Size:8 to 2 AWG
Color:Light Gray
Current Rating:70 A
Enclosure Type:NEMA 3R
Interrupt Rating:10 kA
Mounting Type:Plug
Number of Circuits:4
Number of Phases:1
Number Of Spaces:2
Voltage Rating:120/240 V
Wiring Configuration:3-Wire
Features
Larger knockout provides easier installation and time savings
Top or bottom feed, straight-in wiring saves labor and material, one panel for either top or bottom applications
2/0 lug easily removable and can be installed in any location on the neutral bar
Type BR AFCI breakers, compact design for easier wiring and improved wireway access, optional LED indicates one of six trip codes for circuit diagnostics, provides a clean gutter space
Excellent conductivity and corrosion resistance, copper bus options available
Drywall marking on enclosure - indicates proper mounting depth for flush applications
Tangential center knockout, easier installation for conduit applications Commercial-grade main breaker, 25 kAIC series rated main breaker for great protection
Neutral bus (strap) is easily removable for sub-panel applications
Bonding Z-strap provides easy field conversion for service entrance applications
